Factory offer 1/9 CMOS RA34611A-120 LED USB Endoscope Camera Module Factory

CMOS camera module, support OED and ODM , Focus on Design and Manufacturing Borescopes 11 years

Product Specification:

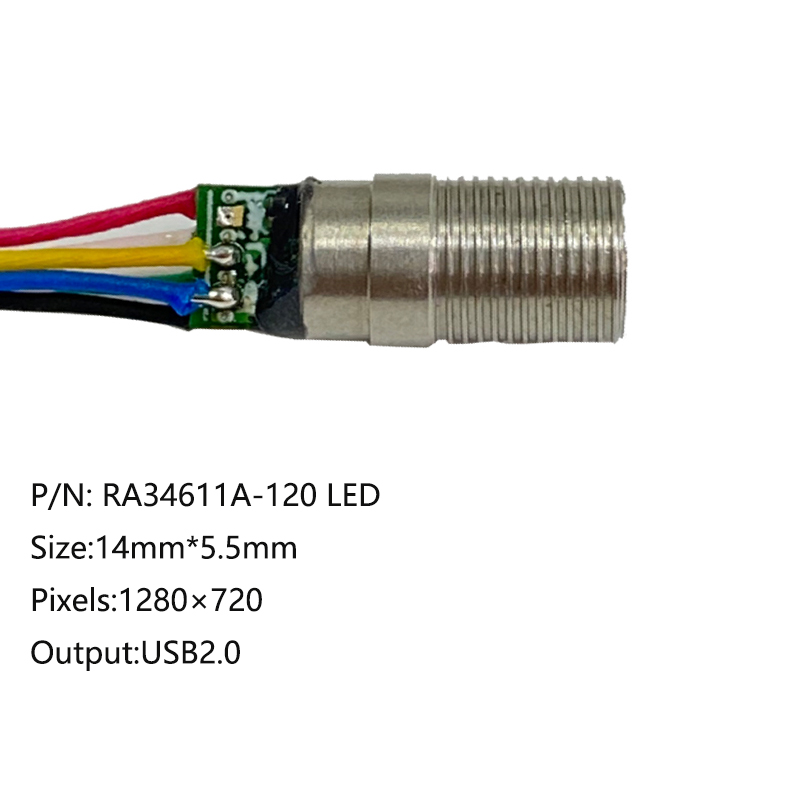

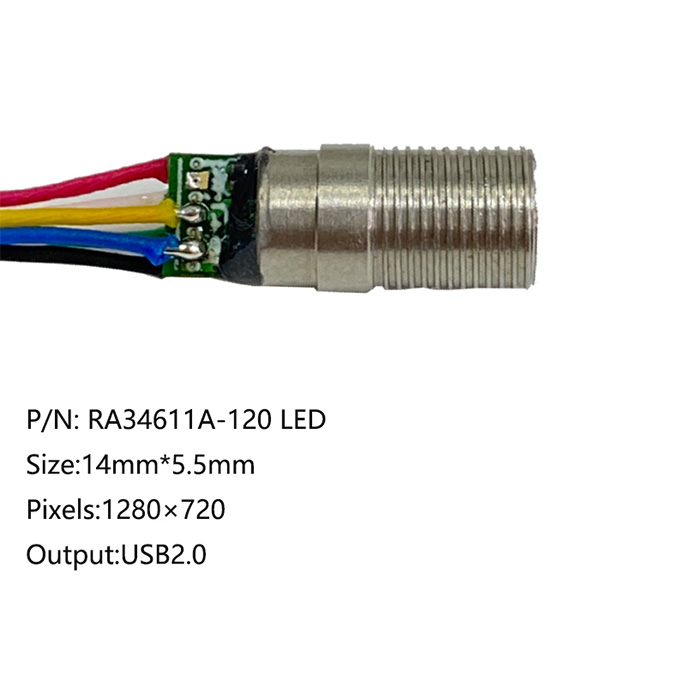

  • Part No. :RA34611A-120 LED :
  • Sensor: 1/9 CMOS :
  • Image Area :1819.58μm×1033.34μm :
  • Pixel size :1.4μm×1.4μm :
  • Size :14mmx5.5mm :
  • Fps: 20Fps :
  • Video Output :USB2.0 :
  • Effective Pixels:1280(h)×720(v) :
  • :
INQUIRY NOW
Product Details

Factory offer 1/9 CMOS RA34611A-120 LED USB Endoscope Camera Module Factory



Voltage DC 3.3V—3.6V 140mA±10mA(With LED)
S/N Ratio  ≥35.9dB
Gray Rating 13th rank
Electronic Shutter  1/60S – 5.7μS Rolling shutter
Dynamic range 69.2dB @ 16x gain
Minimum illumination 0.1LUX

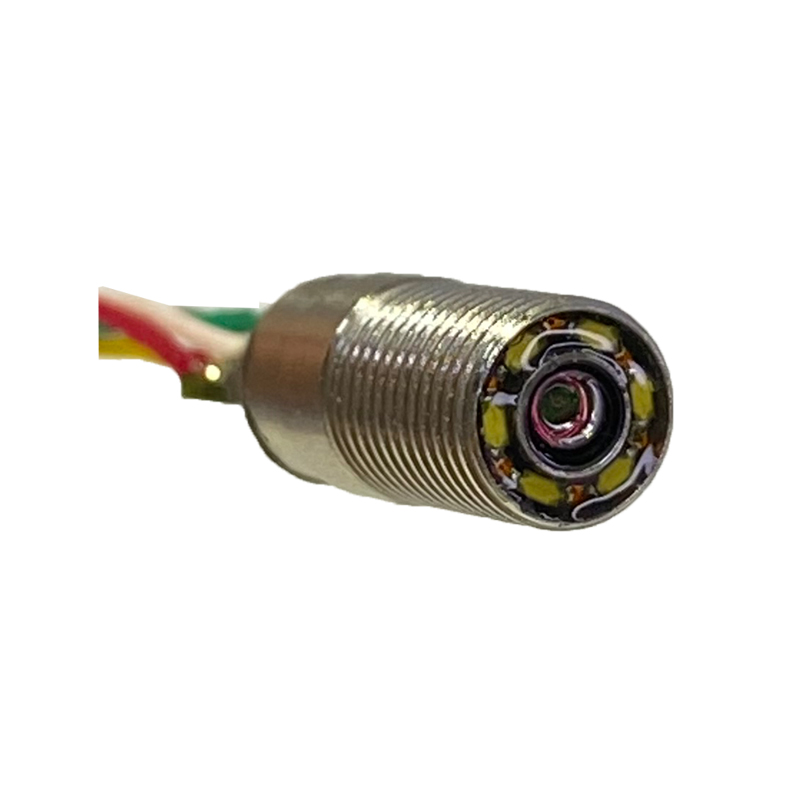

LED 8PCS LED/NO LED
EFL 1.8±5%
DOF 15mm-45mm
FOV   120˚
F.NO 4.5
Struc  4P+1IR
Operating Humidity (-10°C to +70°C)



Campany Introduction

Shenzhen RALCAM Co., Ltd. was established in Shenzhen in the year of 2010. And aiming to become the leading supplier of top-level endoscopes and endoscopic modules.Our factory located in Fuyong Near by Shenzhen airport. As the leading professional supplier of the industry, RALCAM not only provides high-quality general products, but also can offer customized service in an accurate and quick manner. We have provided high-quality products and services for customers in Europe, North America, Southeast Asia and other regions. After years of development, RALCAM has accumulated industry-leading manufacturing experience in the field of endoscope. Currently, we provides more than 10 general-purpose products which are widely used in pipeline detection, car maintenance, home care, health care and other industries.







FAQ

Q1: How to order and Customized are Available?
1)Inquiry quotation(product price shipping cost)-details negotiate-sample or order confirm-provide information-draft order
contract on our website- pay the order- produce goods ready-delivery-sign and confirm product- further cooperation.
2) Logo, Label and packaging Available. >1000pcs, OEM LOGO,packing for free.

Q2. What is the lead time for goods production?
1)Sample: 1-3 working days after payment confirmed
2)<1000pcs: 7-10 working days after payment confirmed
3)>1000pcs:10-15 working days after payment confirmed

Q3. How about the shipping?
1) By Express,By Air. By Sea ( as customers’ requirements)
2)Goods instock, will be shipped within 3-5 working days after confirmed your payment(Depending on the quantity)
(a)By express(DHL,UPS, FedEx ,TNT...) door to door for 3~9 days
(b)By air to your nearest air port for 5~10 days
(c) By sea to your nearest sea port for 20~35days

Q4: How about the Quality control?
We are a high-tech enterprises and passed the GB/T19001-2019 ISO9001:2015 QUALITY MANAGEMENT SYSTEM CERTIFICATION,All products
passed ROHS, CE, FCC Certificate and test one by one to ensure 100% work well before shipment.
