High Quality 1/5” CMOS RA57023C-60LED Mini Cmos Endoscope Camera Module Factory

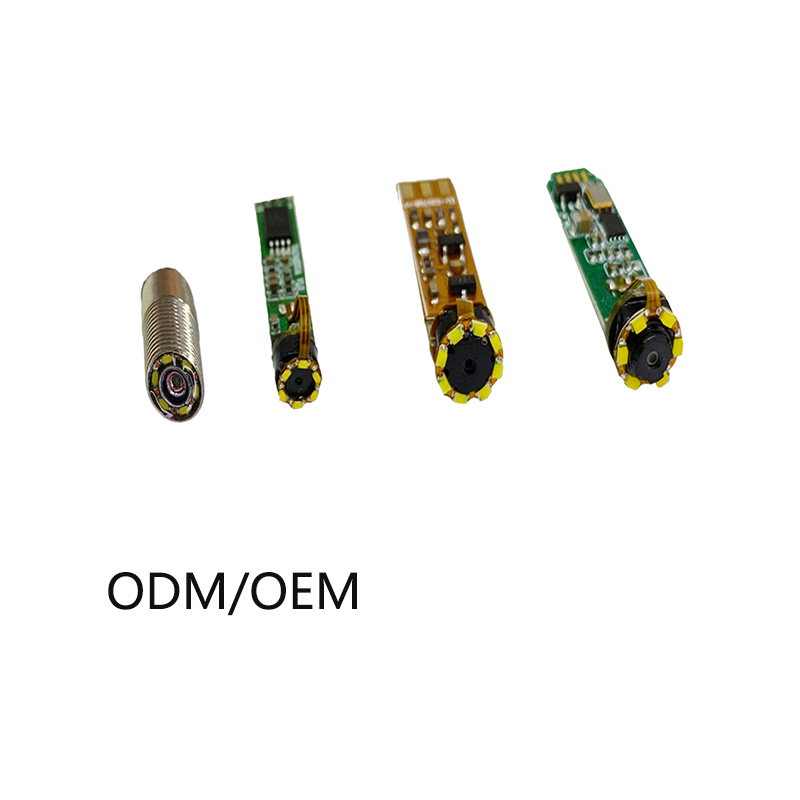

CMOS camera module, support OED and ODM , Focus on Design and Manufacturing Borescopes 11 years

Product Specification:

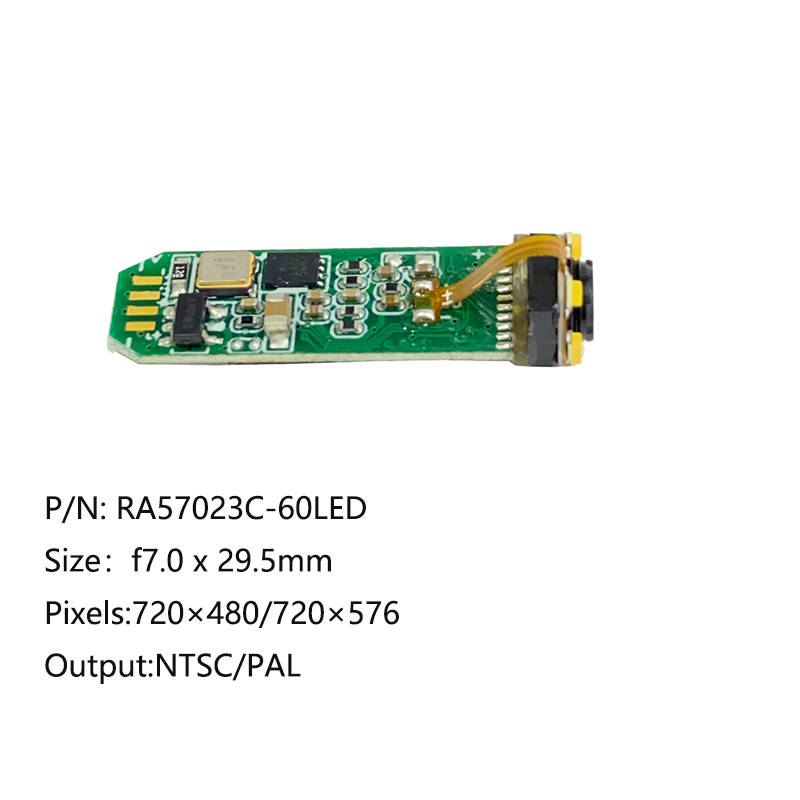

  • Part No. :RA57023C-60LED :
  • Sensor: 1/5” High Color Sensor :
  • Image Area :3913.8μm×3783.6μm :
  • Pixel size :4.2μm×4.2μm :
  • Size :f7.0 x 29.5mm :
  • Fps: 60Fps(N) :
  • Video Output :NTSC :
  • Effective Pixels:720(H)×480(V) :
  • :
Product Details

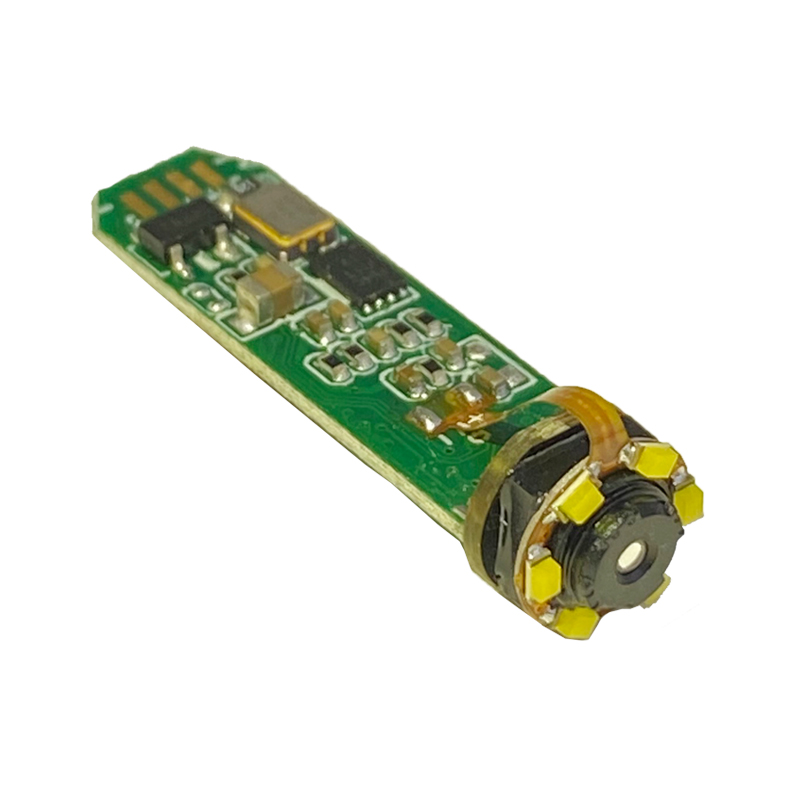

High Quality  1/5” CMOS RA57023C-60LED Mini Cmos  Endoscope Camera Module Factory

Voltage DC DC 3.3V—3.6V
S/N Ratio 46dB
Gray Rating 10th rank
Electronic Shutter  1/60S – 5.7μS
Dynamic range 67dB
Gamma value 0.45
LED 6pcs High Luminous White Color LED or IR LED or NO Light Source
EFL 2.79mm
DOF 30mm-60mm
FOV   120˚
F.NO 4.5
Struc  4P+1IR
Operating Humidity (-10°C to +70°C)



Campany Introduction

Shenzhen RALCAM Co., Ltd. was established in Shenzhen in the year of 2010. And aiming to become the leading supplier of top-level endoscopes and endoscopic modules.Our factory located in Fuyong Near by Shenzhen airport. As the leading professional supplier of the industry, RALCAM not only provides high-quality general products, but also can offer customized service in an accurate and quick manner. We have provided high-quality products and services for customers in Europe, North America, Southeast Asia and other regions. After years of development, RALCAM has accumulated industry-leading manufacturing experience in the field of endoscope. Currently, we provides more than 10 general-purpose products which are widely used in pipeline detection, car maintenance, home care, health care and other industries.





Q1: How to order and Customized are Available?
1)Inquiry quotation(product price shipping cost)-details negotiate-sample or order confirm-provide information-draft order
contract on our website- pay the order- produce goods ready-delivery-sign and confirm product- further cooperation.
2) Logo, Label and packaging Available. >1000pcs, OEM LOGO,packing for free.

Q2. What is the lead time for goods production?
1)Sample: 1-3 working days after payment confirmed
2)<1000pcs: 7-10 working days after payment confirmed
3)>1000pcs:10-15 working days after payment confirmed

Q3. How about the shipping?
1) By Express,By Air. By Sea ( as customers’ requirements)
2)Goods instock, will be shipped within 3-5 working days after confirmed your payment(Depending on the quantity)
(a)By express(DHL,UPS, FedEx ,TNT...) door to door for 3~9 days
(b)By air to your nearest air port for 5~10 days
(c) By sea to your nearest sea port for 20~35days

Q4: How about the Quality control?
We are a high-tech enterprises and passed the GB/T19001-2019 ISO9001:2015 QUALITY MANAGEMENT SYSTEM CERTIFICATION,All products
passed ROHS, CE, FCC Certificate and test one by one to ensure 100% work well before shipment.
